Export Frequency Conversion

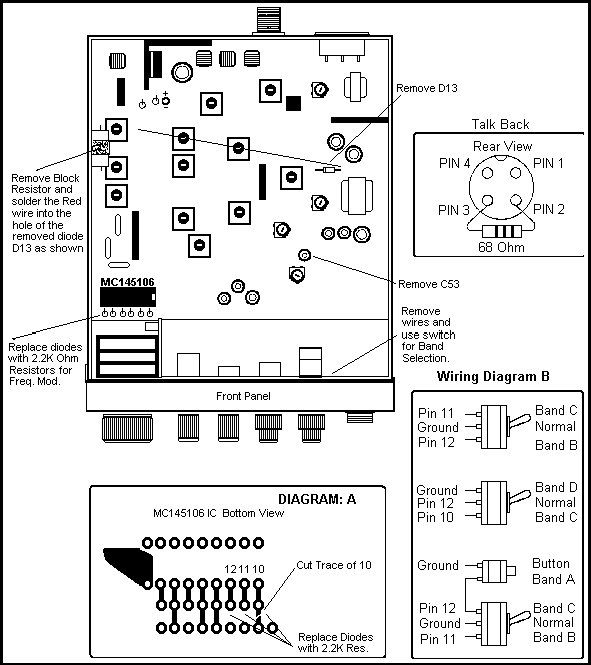

1.	Power and AMC (Modulation Control) modification will make the SS140 a very versitile unit. Use the diagram above to boost the power range and eliminate the HI-LO power switch if desired. The AMC is boosted by removing C53 or adjusting RV-2.
2.	Frequency modifications are shown in Diagram A and B. The diodes must be replaced with 2.2K Ohm resistors if you wish to make these modifications. A SPST center off switch is used to cover various combinations of frequencies shown in diagram B and the frequency chart. Choose the bands you desire and wire the switch accordingly. A simple variation can also be made by using the HI-LO power switch on the unit.
3.	Talk back can be added to the unit by soldering a 68 Ohm resistor from pin 3 of the Mic. socket to ground (Pin 2 of Mic. socket). The HI-LO power switch can also be used to switch in and out the talk back if desired.

Note: The Super Star 140 Microphone wiring is the same as all Midland Radios.

---

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
