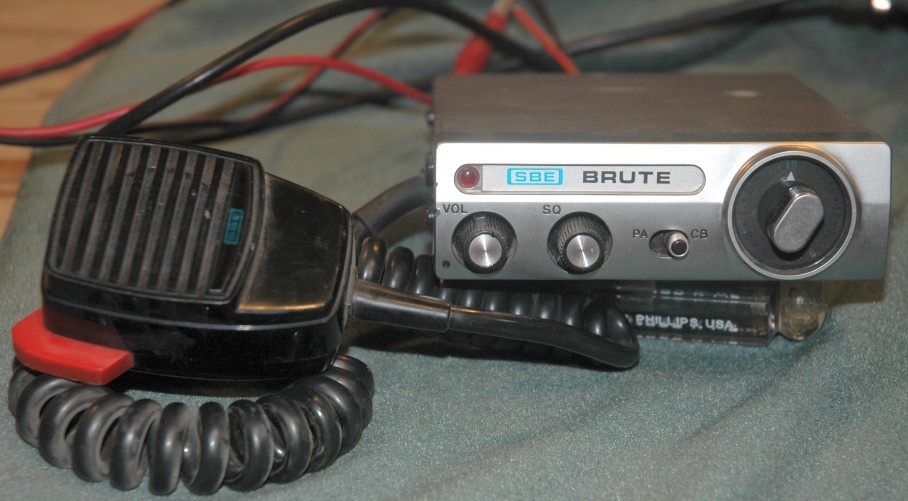

SBE-34CB (Brute)
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.


Click picture to see close-up

Factory Service Manual
      Page 1 to 13
      Page 14 to 27

Diagrams

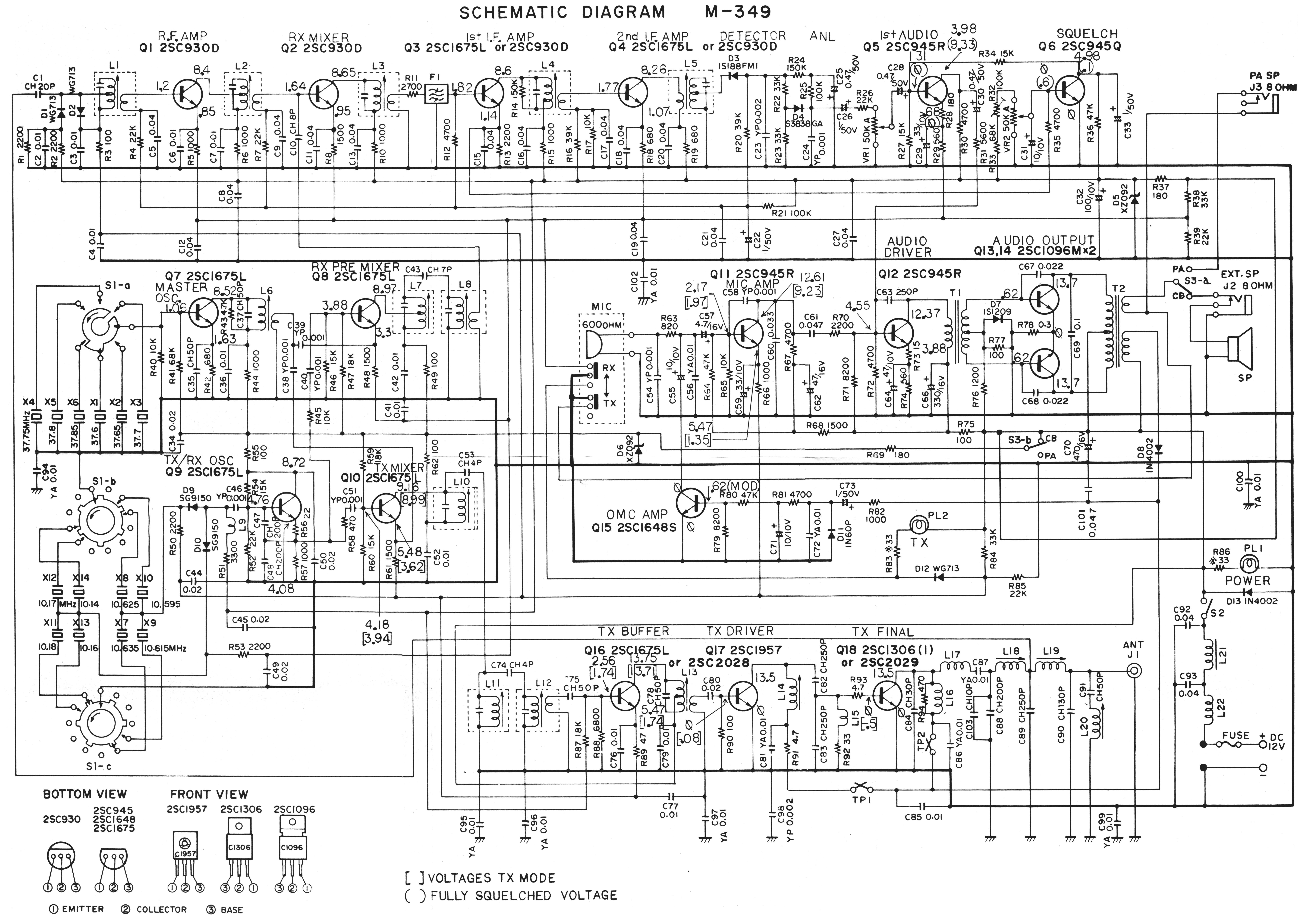

    Schematic Diagram
    Schematic Diagram
