Magnum S6
Documentation Project
CBTricks.com

 Tour of Radio

Magnum S6 Off The Record Features: =================================

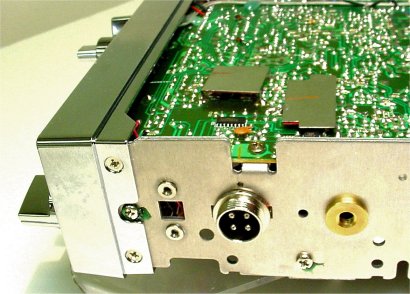

* (2 Mic Jacks) Front Panel and Side Microphone Jacks	* Large Ferrite Power Line Filter
* Blue LEDs for Frequency Counter and Channel Display	* High quality S0239 - Does not slip loose like Export models
* Dimmer Control for Display and F-Counter Prevents eye fatigue from long term use	* High quality PIHER pots on frequently used adjustments Unlike cheaper tin pots on other exports
* Computer Controlled PLL - with 8 Band Selector Each of the 8 Bands can be programmed independently Selectable 5Khz and 10Khz Frequency steps	* Amplified Talk Back circuit with adjustable volume control
* High quality printed circuit board	* Roger Beep circuit (front panel switchable) RB circuit mutes out going beep even when TB is on.

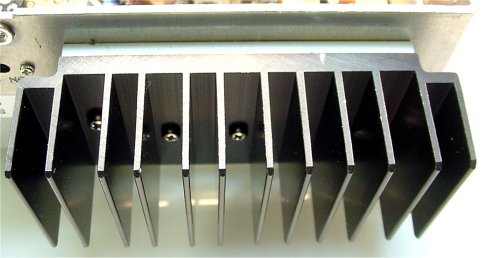

* High quality molded rear panel power connector Unlike low cost 2 part connector on many exports	* Large Heat Sink with underlying metal plate Unlike small screw on heat sink on other exports
* Large round meter - Blue LED backlit - Red LED Xmit	* AMT - "All Mode Talkback" works on all bands Works on FM mode - Unlike most exports

Now For the Pictures

Click on Picture to see full size (use back button to get back to this page)



---

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
