Northpoint NT4HP Frequency Conversion Instructions:
|
1.
|
Check out the radio for proper operation before starting. |
|
2.
|
Remove Power from the radio |
|
3.
|
Remove the bottom cover. (speaker side) |
|
4.
|
With radio open, knobs
facing you, locate the frequency board in lower left section of chassis. |
|
5.
|

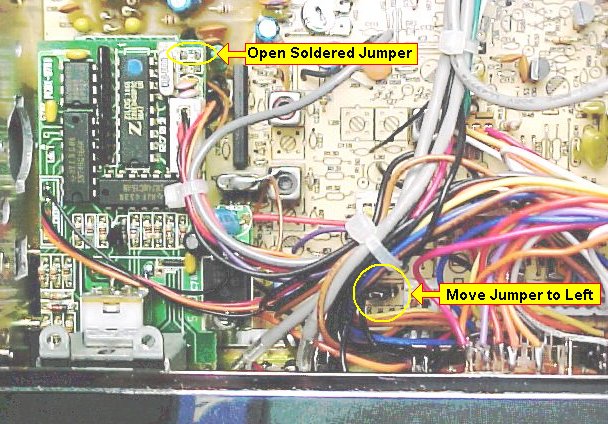

Locate J106 directly behind the echo control, (3 pins with a jumper on the right pair). Move the jumper to the left pair of pins.This completes the frequency conversion. |
|
6.
|
Apply Power
and check out the radio for proper operation and do or check alignment if
necessary. You now have a choice of 6 bands. To select band, Move BRT/DIM switch to the DIM position. Select N4, or band 4, There are 6 bands. Move the BRT/DIM switch back to BRT. This selects the "CB" band CH. 1 - CH. 40. See frequency chart. |
|
7.
|
Replace cover. |
| Peak
& Tune Set dead key power levels for 10 watts high power (VR13).Set VR14 for 100% modulation +/- 2%. This concludes the peak & tune for optimum performance of the Northpoint NT-4 series radio. |
|
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
