Midland
77-115
Documentation Project
CBTricks.com
Open Mod limiter
Note: Remove resistor R244 to open Mod. Limiter (Near KIA7217) or remove Q207.

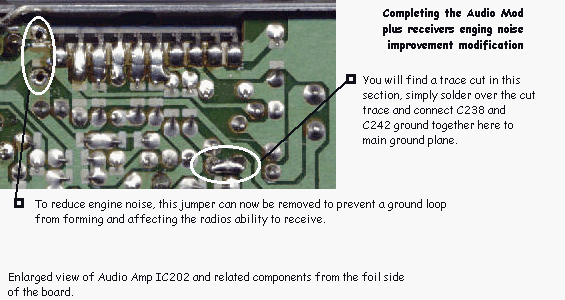

Supplemental Audio Modification Infomation
The
following was sent to me by Handy Andy, Unit 38 many Thanks
Copyright
© 1998,1999,2000 CBTricks.com
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
