General Stonewall Jackson
Documentation Project

CBTricks.com
Frequency Conversion



Click on the picture to see full size



Frequency Conversion

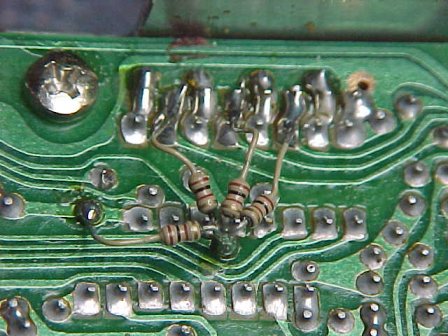

1. Remove the top cover from the unit and locate the resistors on the bottom of the main PCB..
2. Unsolder them and remove them THAT'S it..








Copyright © 1998,1999,2000 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
