Galaxy DX Radios DX959
Documentation Project

CBTricks.com

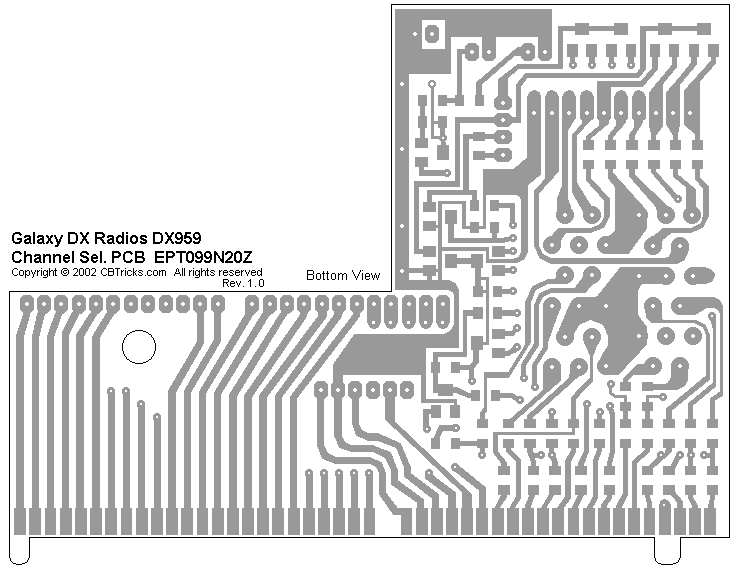

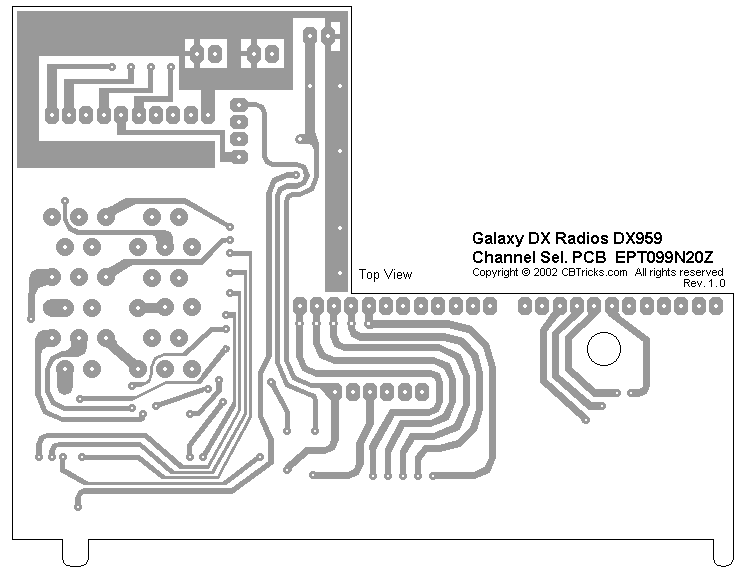

Channel Selector P.C.B. (EPT099N20Z) Trace Layout




Copyright © 1998,1999,2000,2002 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
