Galaxy
DX Radios DX939
Documentation Project
CBTricks.com
Slide

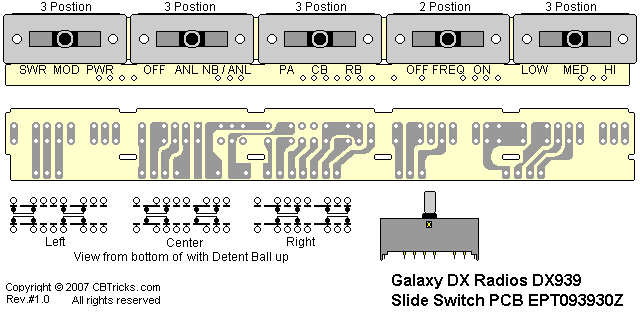

Switch PCB (EPT093930Z)
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
SWITCH PCB (DX-939) EPT093930Z |
#MT-155E-P03 |
|
|
SWITCH PCB 111x12.7x1.6tmm (S) |
EPT093930Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
FREQ DIS |
SLIDE SW 2N |
EWSL31026K |
|
SWR/MOD/PWR |
SLIDE SW 3N |
EWSL31027K |
|
OFF/ANL/NB ANL |
SLIDE SW 3N |
EWSL31027K |
|
PA/CB/RB |
SLIDE SW 3N |
EWSL31027K |
|
TONE LOW/MED/HI |
SLIDE SW 3N |
EWSL31027K |
|
SLIDE SW |
MASK PLATE(SW) |
XZZZ90296A |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
