Galaxy DX Radios DX939
Documentation Project

CBTricks.com

MODULAR 002 P.C.B. EPF000210Z

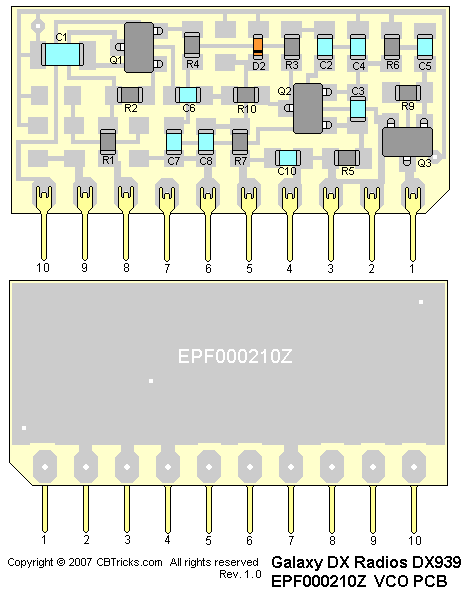

Trace Layout
Schematic Diagram



Ref#

Description

MFR. Part No.



MODULAR 002A UHIC07A SUB

#MF-002A



MODULAR 002 PCB 26.5x12.5x1.0mm

EPF000210Z

Resistors

Ref#

Description

MFR. Part No.

R1

CHIP/F/R (SMD) 10 OHM 0.1W

RCY011004Z

R2

CHIP/F/R (SMD) 10K OHM 0.1W

RCY011034Z

R3

CHIP/F/R (SMD) 100 OHM 0.1W

RCY011014Z

R4

CHIP/F/R (SMD) 10K OHM 0.1W

RCY011034Z

R5

CHIP/F/R (SMD) 10K OHM 0.1W

RCY011034Z

R6

CHIP/F/R (SMD) 560 OHM 0.1W

RCY015614Z

R7

CHIP/F/R (SMD) 3.3K OHM 0.1W

RCY013324Z

R9

CHIP/F/R (SMD) 220K OHM 0.1W

RCY012244Z

R10

CHIP/F/R (SMD) 10 OHM 0.1W

RCY011004Z

Capacitors

Ref#

Description

MFR. Part No.

C1

T/C (SMD) 1UF 16WV M(25WV) 'A'CASE

CTY161056Z

C2

CHIP/C 0.01UF 50WV M Z5U K X7R

CK1103AB6U

C3

CHIP/C 390PF 50WV K SL J CH

CK1391AB5L

C4

CHIP/C 180PF 50WV K SL K CH

CK1181AB5L

C5

CHIP/C 10PF 50WV D CH

CK1100AB2A

C6

CHIP/C 10PF 50WV D CH

CK1100AB2A

C7

CHIP/C 27PF 50WV J CH

CK1270AB4A

C8

CHIP/C 68PF 50WV J CH

CK1680AB4A

C10

CHIP/C 0.001UF 50WV Z SL K X7R

CK1102AB7L

Transistors

Ref#

Description

MFR. Part No.

Q1

T/R (SMD) 2SC2712GR-TE85L

TY2SC2712G

Q2

T/R (SMD) 2SC3123-TE85L

TY2SC3123Z

Q3

T/R (SMD) 2SC3123-TE85L

TY2SC3123Z

Diodes

Ref#

Description

MFR. Part No.

D2

DIODE (SMD) 1SV217-TP

ED1V00217Y

IC Pin

Ref#

Description

MFR. Part No.

IC PIN 022-1.0-S (WAKO)

GZZZ50098Z
