Galaxy
DX Radios DX939
Documentation Project
CBTricks.com
Channel Selector PCB
(EPT099N20Z)

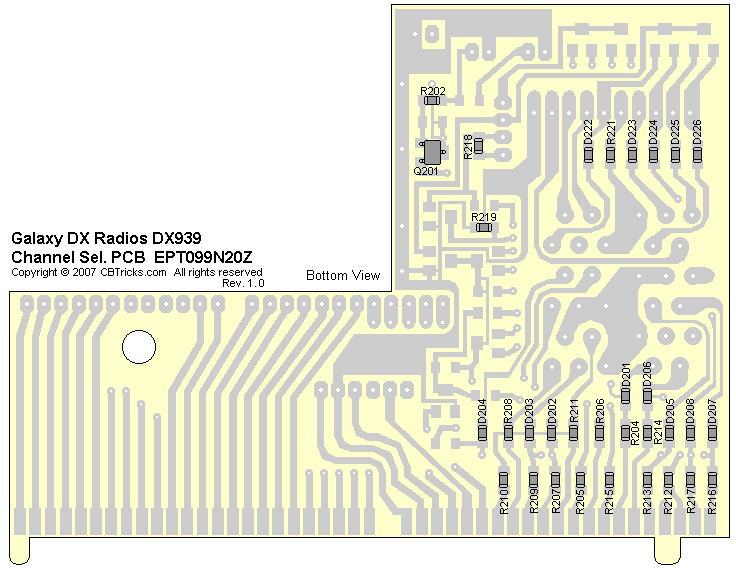

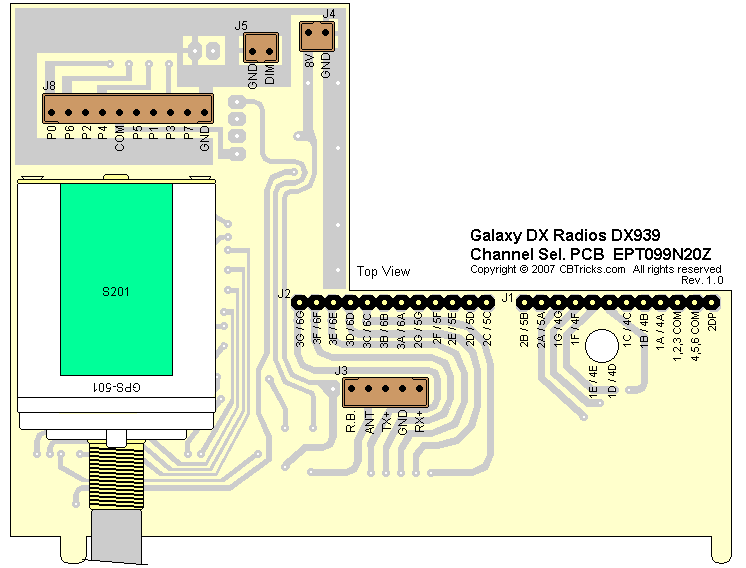

Trace Layout
|
Ref#
|
Description |
MFR. Part No. |
|
|
ROTARY SW PCB EPT099N20Z |
#T-145G-P02 |
|
|
ROTARY SW PCB 82x65x1.6tmm (d) |
EPT099N20Z |
Resistors
|
Ref#
|
Description |
MFR. Part No. |
|
D201 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D202 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D203 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D204 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D205 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D206 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D207 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D208 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D221 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D222 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D223 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D224 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D225 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
D226 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R202 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R204 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R205 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R206 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R207 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R208 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R209 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R210 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R211 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R212 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R213 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R214 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R215 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R216 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R217 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R219 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
Transistors
|
Ref#
|
Description |
MFR. Part No. |
|
Q201 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
Switch
|
Ref#
|
Description |
MFR. Part No. |
|
S201 |
ROTARY SW GPS-0501 |
EWRT32000S |
Connectors
|
Ref#
|
Description |
MFR. Part No. |
|
J1 |
PCB CONNECTOR/S PH=2mm 12P |
EX07N48928 |
|
J2 |
PCB CONNECTOR/S PH=2mm 12P |
EX07N48928 |
|
J3 |
PCB CONNECTOR/S PH=2MM 5P |
EX07N48222 |
|
J4 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J5 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J8 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
