Galaxy DX Radios DX929
Documentation Project

CBTricks.com

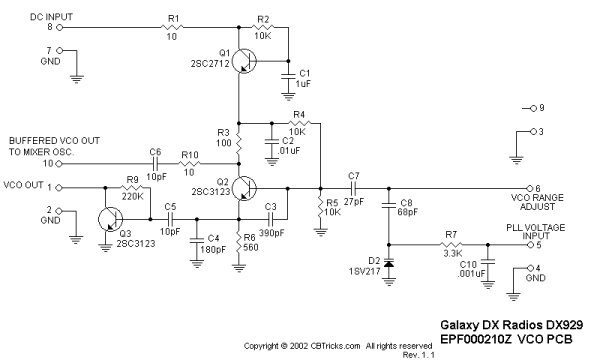

MODULAR VCO P.C.B. (EPF000210Z)
Trace Layout

Click image to see full size


Copyright © 2003 CBTricks.com
