Frequency
Conversion
Export Frequency Conversion
|
1.
|
Remove

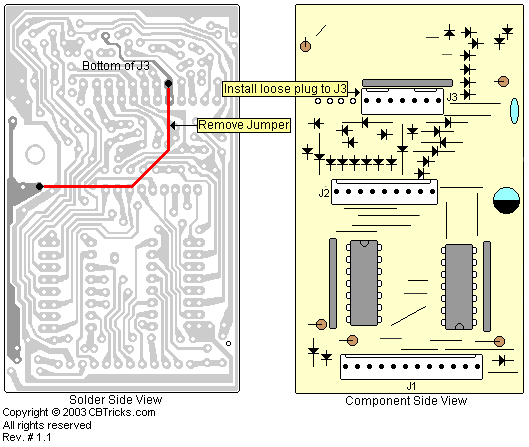

the bottom cover from the unit and locate the Band PCB EPT004410Z on the
left side of the radio. Remove the screw holding the board and plug in
the loose connector J3 on the component side as shown above. |
| 2. | Unsolder
and remove the short jumper wire on the solder side of the Band PCB, and
re-mount the board back in place. The radio will now work from 25.165MHz
- 28.755MHz |
| NOTE: The following step is needed only in the very first production radios. | |
|
3.
|
Locate the small 3 pin keyed J106 connector hanging loose near the Band selector switch, and plug it back into it's socket. |
WARNING! Not Legal For Class D CB Use In The U.S.A.
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
