Galaxy DX Radios DX66V
Documentation Project
CBTricks.com
Channel Selector PCB (EPT055V30Z)

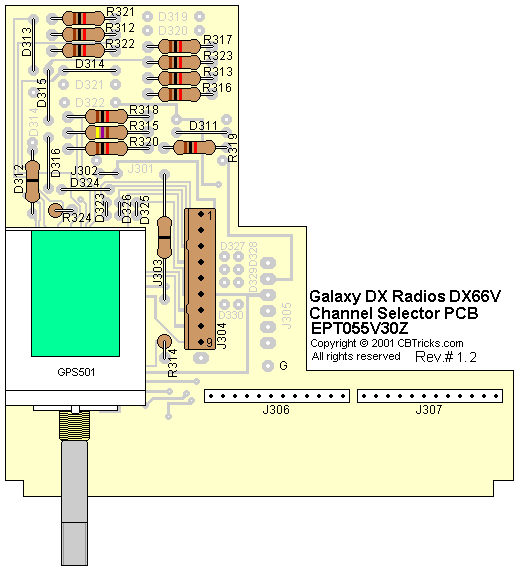

Copper Trace Layout



Ref.#

Description

MFR. Part No.


CH SW PCB EPT055V30Z Complete with Components

#MT-140P-P04


CH SW PCB

EPT055V30Z

Resistors

Ref.#

Description

MFR. Part No.

R312

C/F/R 1K OHM 1/4W M

RCM141024A

R313

C/F/R 1K OHM 1/4W M

RCM141024A

R314

C/F/R F-TYPE 1K OHM 1/4W U

RCU141024Z

R315

C/F/R 470 OHM 1/4W M

RCM144714B

R316

C/F/R 1K OHM 1/4W M

RCM141024A

R317

C/F/R 1K OHM 1/4W M

RCM141024A

R318

C/F/R 1K OHM 1/4W M

RCM141024B

R319

C/F/R 1K OHM 1/4W M

RCM141024A

R320

C/F/R 1K OHM 1/4W M

RCM141024B

R321

C/F/R 1K OHM 1/4W M

RCM141024A

R322

C/F/R 1K OHM 1/4W M

RCM141024A

R323

C/F/R 1K OHM 1/4W M

RCM141024A

R324

C/F/R F-TYPE 1K OHM 1/4W U

RCU141024Z

J303

C/F/R 0 OHM 1/4W

RCP140004Z

D312

C/F/R 0 OHM 1/4W

RCP140004Z

Jumpers

Ref.#

Description

MFR. Part No.

J302

JUMPER WIRE 7x3x7mm

WX01070703

J323

JUMPER WIRE 7x3x7mm

WX01070703

J325

JUMPER WIRE 7x3x7mm

WX01070703

J326

JUMPER WIRE 7x3x7mm

WX01070703

D311

JUMPER WIRE 7x8x7mm

WX01070708

D313

JUMPER WIRE 7x8x7mm

WX01070708

D314

JUMPER WIRE 7x8x7mm

WX01070708

D315

JUMPER WIRE 7x8x7mm

WX01070708

D316

JUMPER WIRE 7x8x7mm

WX01070708

D324

JUMPER WIRE 7x8x7mm

WX01070708

Connectors

Ref.#

Description

MFR. Part No.

J304

PCB CONNECTOR/S 9P T PH=2.5(WHITE)

EX07N48083

J307

PCB CONNECTOR/S 12P PH=2

EX07N48150

CN4-J307

WIRE CONNECTOR/H 12P-12P L=120 PH=2

EX07W49253

J306

PCB CONNECTOR/S 12P PH=2(WHITE)

EX07N48767

CN3-J306

WIRE CONNECTOR/H 12P-12P L=100 PH=2

EX07W49252

Switch

Ref.#

Description

MFR. Part No.


ROTARY SW GPS-0501

EWRT32000S

Hardware

Ref.#

Description

MFR. Part No.

CH(2)

SET SCREW M3x0.5Px6

JS053006MN
Copyright © 1998,1999,2000 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
