Galaxy DX Radios DX66V
Documentation Project

CBTricks.com

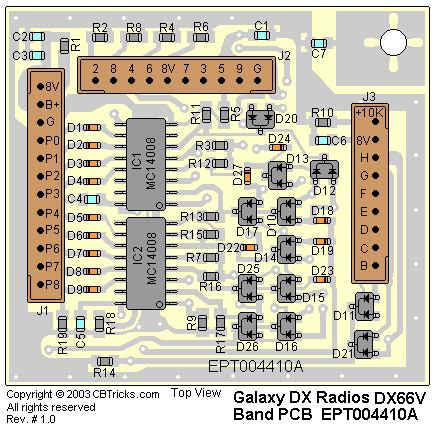

Band Board Layout (EPT004410A)
Trace Layout

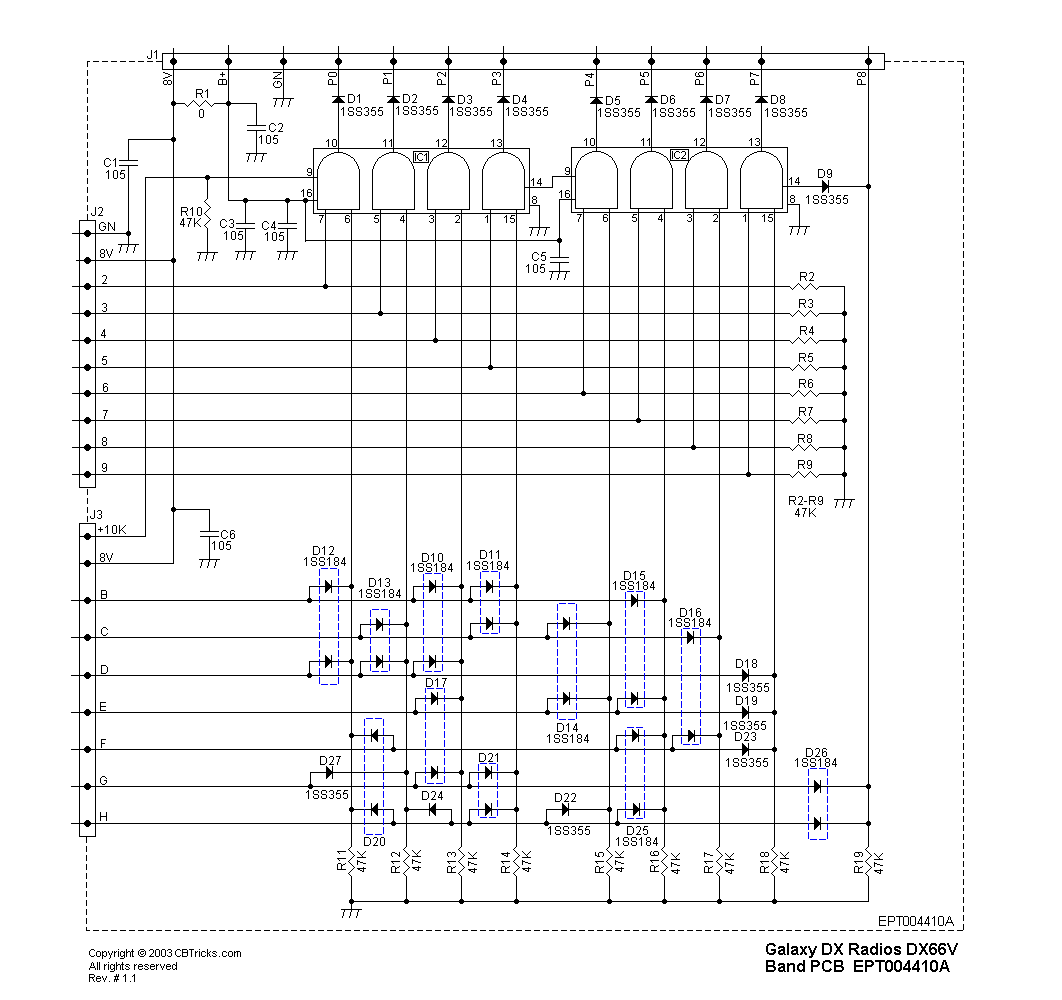

Schematic Diagram
Schematic Diagram





Ref#
Description
MFR. Part No.


BAND PCB EPT004410A Complete with Components

#MM-104T-P06



BAND P.C.B. 46x41x1.6tmm(S)

EPT004410A

Resistors

Ref#
Description
MFR. Part No.

R1

CHIP/F/R (SMD) 0 OHM 0.1W

RCY010004Z

R2

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R3

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R4

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R5

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R6

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R7

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R8

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R9

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R10

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R11

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R12

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R13

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R14

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R15

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R16

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R17

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R18

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

R19

CHIP/F/R (SMD) 47K OHM 0.1W

RCY014734Z

Capacitors

Ref#
Description
MFR. Part No.

C1

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C2

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C3

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C4

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C5

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C6

CHIP/C (SMD) 1UF 16WV Z Y5V

CK5105AB7R

C7

CHIP/C (SMD) 0.1UF 25WV Z Y5V

CK2104AB7R

Integrated Circuits

Ref#
Description
MFR. Part No.

IC1

I.C. (SMD) MC14008BDR2(16PIN)

YNMC14008D

IC2

I.C. (SMD) MC14008BDR2(16PIN)

YNMC14008D

Diodes

Ref#
Description
MFR. Part No.

D1

DIODE (SMD) 1SS355

EDSS00355Y

D2

DIODE (SMD) 1SS355

EDSS00355Y

D3

DIODE (SMD) 1SS355

EDSS00355Y

D4

DIODE (SMD) 1SS355

EDSS00355Y

D5

DIODE (SMD) 1SS355

EDSS00355Y

D6

DIODE (SMD) 1SS355

EDSS00355Y

D7

DIODE (SMD) 1SS355

EDSS00355Y

D8

DIODE (SMD) 1SS355

EDSS00355Y

D9

DIODE (SMD) 1SS355

EDSS00355Y

D10

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D11

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D12

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D13

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D14

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D15

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D16

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D17

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D18

DIODE (SMD) 1SS355

EDSS00355Y

D19

DIODE (SMD) 1SS355

EDSS00355Y

D20

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D21

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D22

DIODE (SMD) 1SS355

EDSS00355Y

D23

DIODE (SMD) 1SS355

EDSS00355Y

D24

DIODE (SMD) 1SS355

EDSS00355Y

D25

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D26

DIODE (SMD) 1SS184-TE85L

EDSS00184Y

D27

DIODE (SMD) 1SS355

EDSS00355Y

Connectors

Ref#
Description
MFR. Part No.

J1

PCB CONNECTOR/S 12P PH=2

EX07N48150

J1

WIRE CONNECTOR/H 12P L=160mm PH=2mm

EX07N49280

J2

PCB CONNECTOR/S 10P PH=2

EX07N48209

J2

WIRE CONNECTOR/H 10P-9P L=150 2.5/2

EX07N49273

J3

PCB CONNECTOR/S 9P PH=2

EX07N48543

J3

WIRE CONNECTOR/H 9P PH=2mm L=290mm

EX07N49281

Hardware

Ref#
Description
MFR. Part No.


PCB BRACKET

MT3001010S

PCB BKT

SET SCREW M3x0.5Px6

JS053006MN
