Galaxy DX Radios DX45MP
Documentation Project

CBTricks.com

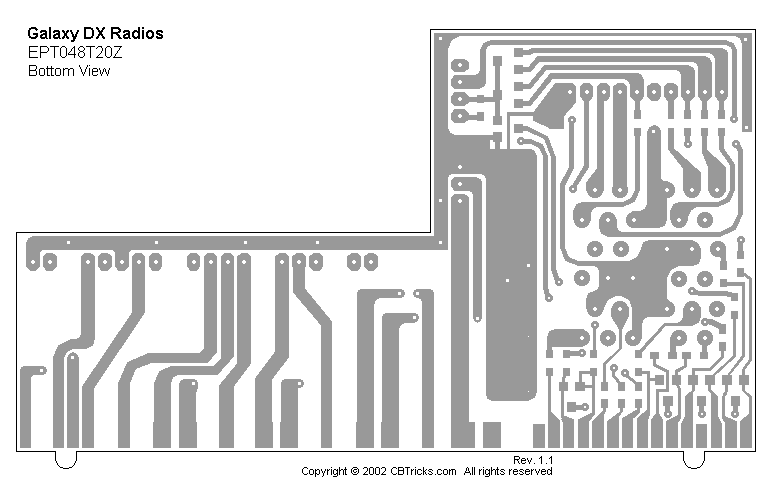

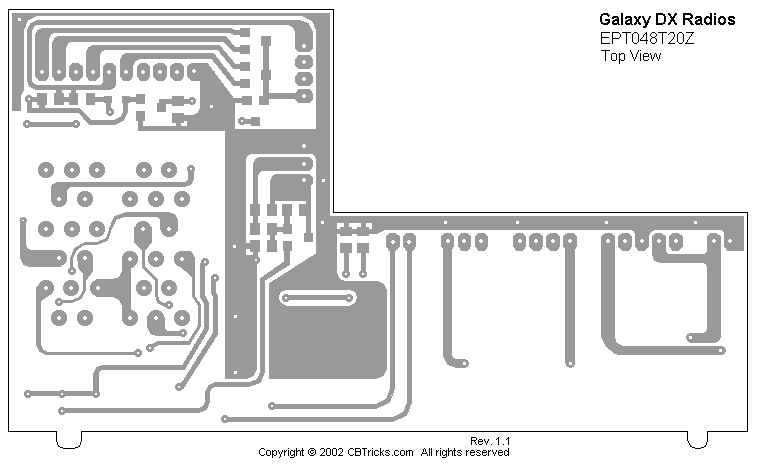

Channel Selector PCB (EPT48T20Z) Trace Layout




Copyright © 2003 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
