Cherokee
Radios CBS500
Documentation
Project
CBTricks.com
Frequency
Conversion
10 Bands: (A - J) 25.165 - 29.655MHz
Export Frequency Conversion
|
1.
|

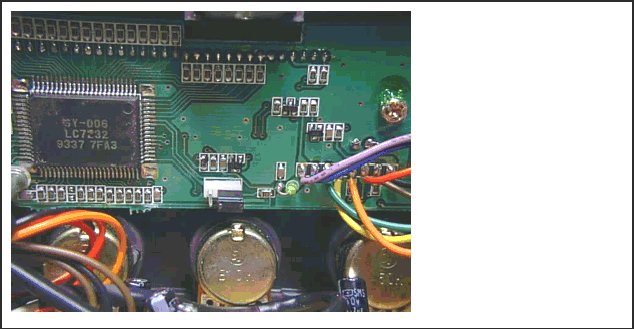

Remove the top cover and look at the circuit board on the back of the faceplate. |
|
2.
|
Locate the jumper close to the CPU chip LC7232. |
|
3.
|
Move this jumper off of the pins that it's on and put it on the side. |
|
4.
|
Once the channel modification has been done press channel 9-19 button and hold and turn on the radio. After this modification use the 1 button to select different bands of 40 channels. |
WARNING! Not Legal For Class D CB Use In The U.S.A.
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
