Alpha 10 Max AM-1000
Documentation Project

CBTricks.com

Alpha 10 Max Frequency Conversion

NOTE: 10 Meter to CB Conversion. (The Easy Way)
Hold Down the FUNCT & SCAN Buttons while Powering ON the Radio.
Conversion Back to 10 Meter Band will require a Programming Cable.

This radio can be programed by software.

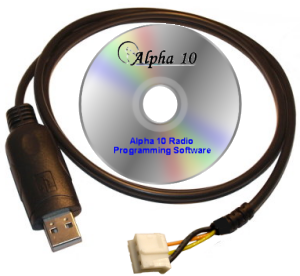

You will need the software and USB cable kit

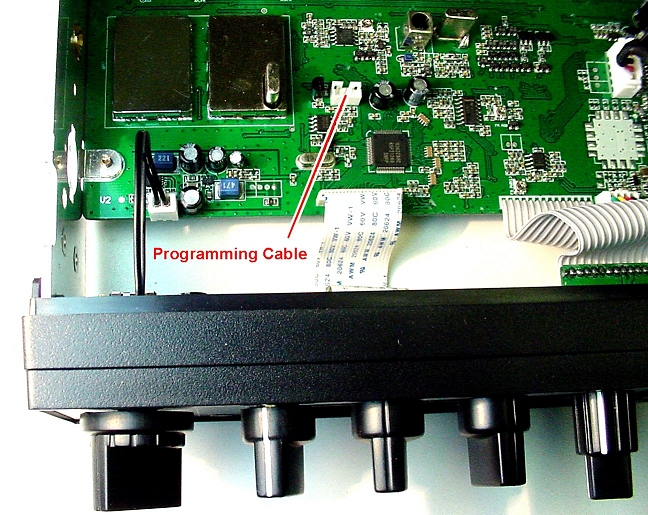

Remove the bottom cover and plug the cable in the connector shown in the picture.

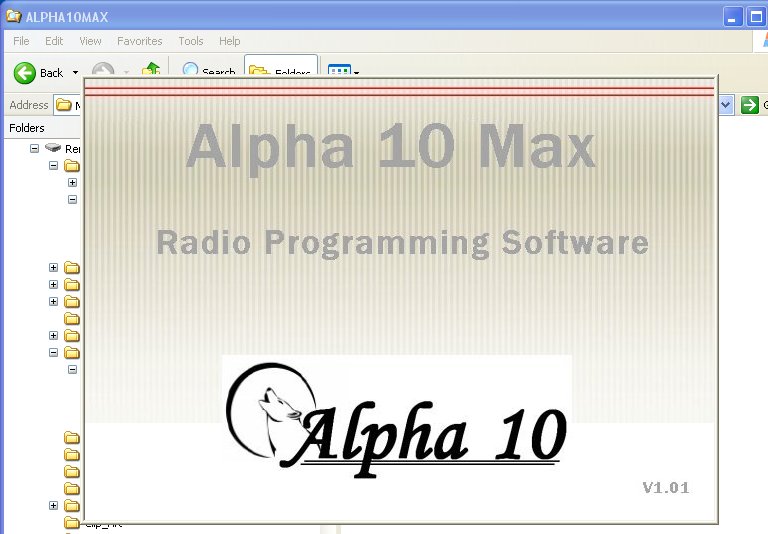

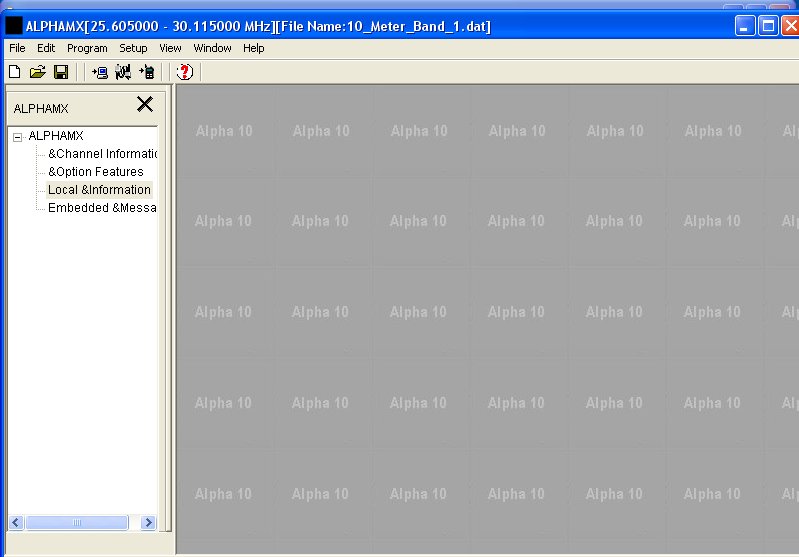

When you startup the programing software there is a short splash screen with the Alpha Logo.

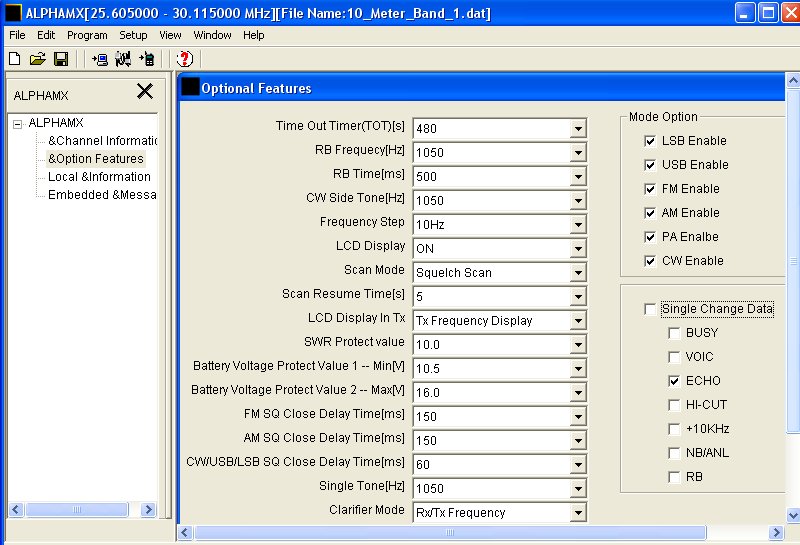

Click on Opition Features to set options

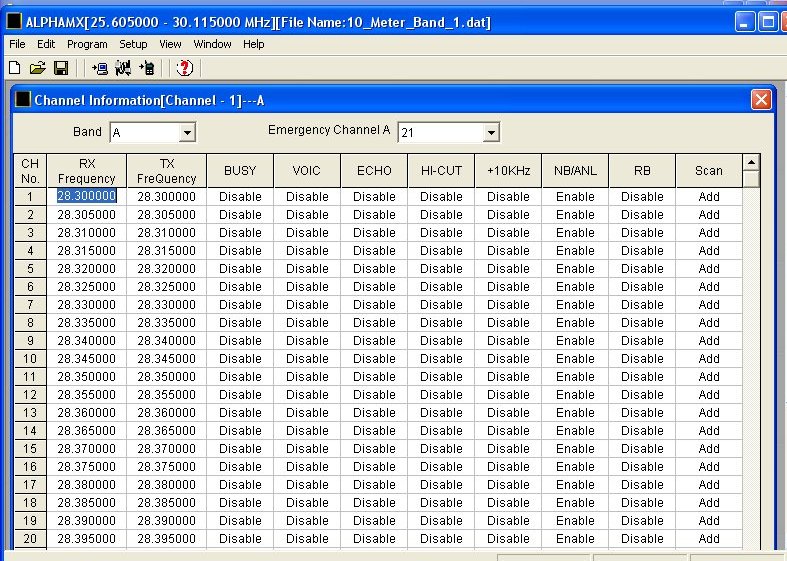

Click on Channel Information to program channels.

After you get everything set the way you want it download to radio.






Copyright © 2010 CBTricks.com

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
